In non-ferrous metal precision machining—especially when cutting pure copper—tooling must meet extremely demanding requirements. It needs to maintain sharp cutting edges, ensure smooth chip evacuation, and resist material adhesion. Long tool life is also critical for maintaining efficiency and consistency.

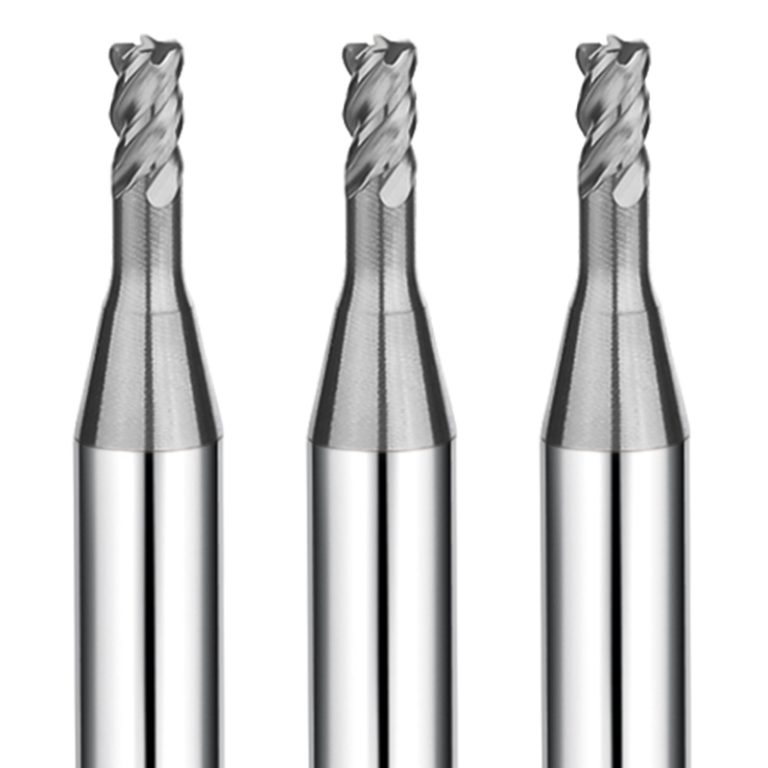

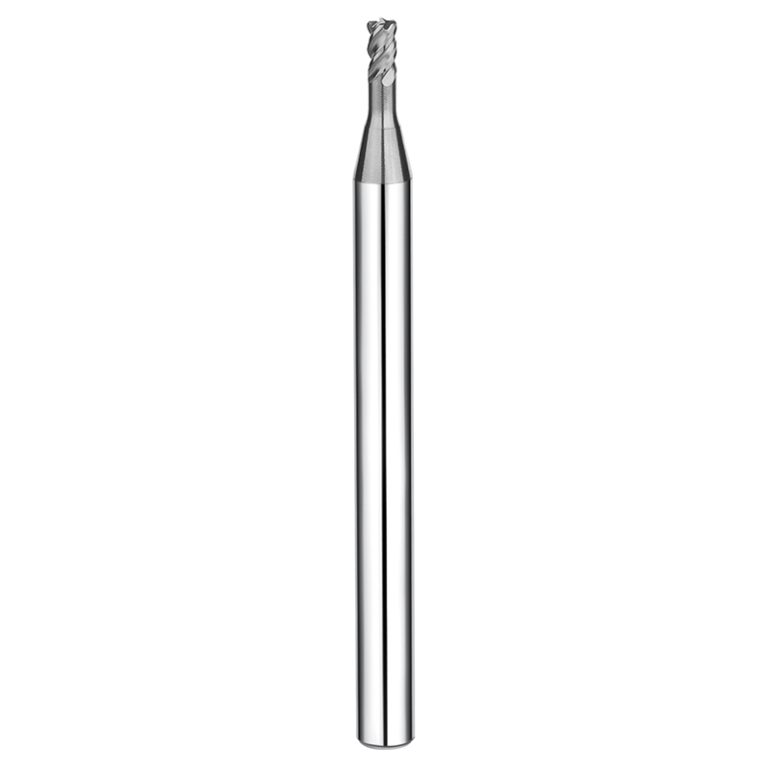

The SAMHO DLC-coated 4-flute long-neck round nose end mill is specifically engineered for these conditions. It is optimized for high-efficiency machining of pure copper, while also delivering excellent performance in aluminum alloys and resin materials.
This tool features a high-performance DLC coating that greatly reduces friction. It minimizes common issues in copper machining, such as material sticking and built-up edge. As a result, it improves surface finish and maintains stable dimensional accuracy.
Advanced Technical Features
High-Adhesion DLC Coating for Extended Tool Life
This tool features a proprietary DLC (diamond-like carbon) coating engineered for red copper machining. The coating delivers an extremely low coefficient of friction and strong chemical inertness, ensuring stable performance in demanding cutting conditions.
- Excellent wear resistance: Maintains a sharp cutting edge during long, continuous machining cycles
- Strong anti-adhesion performance: Reduces built-up edge (BUE) and prevents material sticking in red copper applications
- High coating adhesion strength: Ensures stable coating performance even under high-speed and heavy-load cutting conditions
Long-Neck Corner-Radius Design for Deep Cavity Machining
The long-neck geometry combined with a corner-radius tip is designed for complex and deep cavity machining.
- Ideal for deep cavity work: Suitable for red copper molds, electrodes, and 3D contour machining
- Reduced stress concentration: Corner-radius design helps prevent edge chipping and improves tool durability
- Stable tool path control: Improves contour accuracy and machining consistency in complex geometries
High-Efficiency 4-Flute Design for Stable Cutting Performance
The 4-flute structure is optimized to balance cutting efficiency and tool rigidity.
- Smoother cutting process: Load is distributed evenly across multiple cutting edges
- Improved surface finish: Delivers high-quality finishes on red copper and aluminum alloys
- Higher machining efficiency: Supports increased feed rates while maintaining stable cutting performance
High-Strength Fine-Grain Carbide Substrate
Built on a premium fine-grain carbide base and manufactured with high-precision grinding technology.
- High dimensional consistency: Suitable for batch production and precision machining environments
- Strong fracture resistance: Performs reliably under heavy-load conditions in non-ferrous metal machining
- Stable long-term performance: Ensures consistent tool behavior during extended production runs
Target Applications & Industries
The SAMHO DLC-coated 4-flute long-neck bull nose end mill is designed for high-efficiency and precision machining of red copper. It also provides stable performance and high-quality surface finishes when machining aluminum alloys and resin materials.
This tool is suitable for a wide range of precision machining applications, including:
- High-finish machining of red copper electrodes and precision components
- Machining of red copper mold cavities and deep-cavity structures
- Precision milling of aluminum alloy structural parts with high efficiency
- Contour machining and finishing of resin and non-metallic materials
- Complex 3D surface and high-precision profile machining
Why Choose SAMHO as Your Wholesale Partner?
Specialized in Non-Ferrous Metal Machining
Designed for high-performance red copper machining, the DLC coating and optimized cutting geometry help reduce material adhesion and built-up edge, ensuring stable and clean cutting performance.
Consistent and Stable Production Quality
Strict manufacturing control ensures high consistency across batch production, supporting reliable performance in industrial machining environments.
High-Precision Manufacturing Capability
Shank diameter tolerance is controlled within 0 to -0.003 mm. This ensures excellent clamping accuracy and stable performance on high-end CNC machines.
OEM / ODM Custom Tooling Support
We provide customized tooling solutions for non-standard applications, with fast response to different machining conditions and industry requirements.
