When machining ductile materials like red copper or aluminum, the biggest challenge is “stickiness.” The SAMHO DLC-Coated Series solves this with a specialized surface treatment that acts as a solid lubricant, delivering mirror-like surface finishes and significantly extended tool life.
Advanced Technical Features
1. DLC Coating for Ultra-Low Friction & Non-Stick Performance
The Diamond-Like Carbon (DLC) coating provides exceptionally low friction and anti-adhesion properties. This is critical for:
- Resisting Built-Up Edge (BUE): Preventing material from welding to the cutting edge
- Cleaner Cuts: Reducing tool wear in soft, sticky materials like red copper and resin-based plastics
2. Mirror-Finish Flutes for Rapid Chip Evacuation
Every flute is polished to a mirror finish. This open, high-lubricity geometry enables:
- Smooth Chip Flow: Preventing chip recutting and tool clogging during high-speed CNC operations
- Dimensional Stability: Maintaining accuracy over long production runs by reducing heat buildup

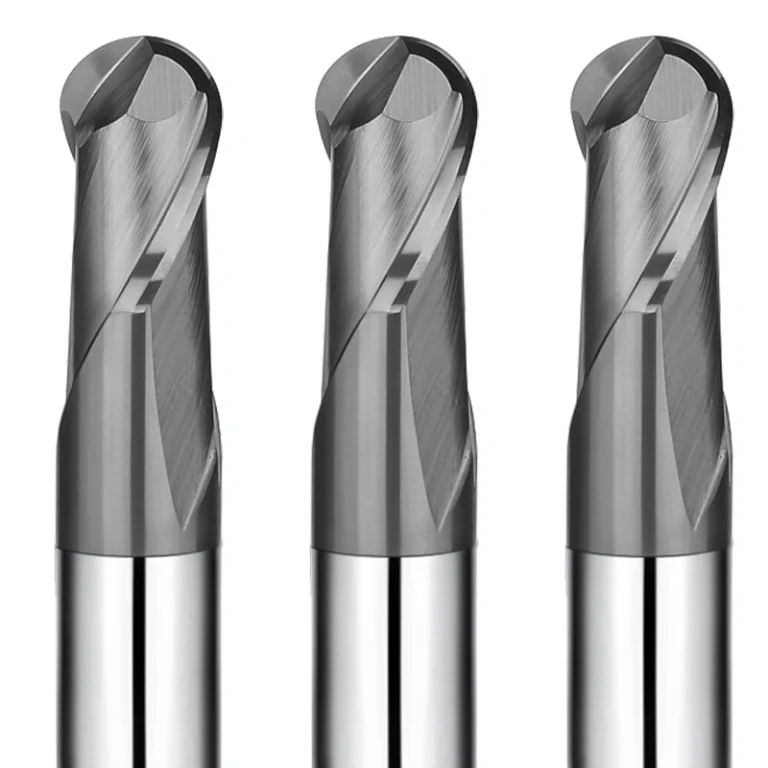

3. Optimized Ball Nose Profile for 3D Surface Finishing
The precision-ground spherical tip is ideal for:
- Electrode Machining: Achieving tight tolerances in high-purity copper
- 3D Mold Profiling: Finishing curved surfaces and free-form geometries with minimal tool marks
- Complex Cavities: Reaching deep features in aluminum and resin tooling
4. Tested Cutting Parameters for Out-of-the-Box Performance
SAMHO provides field-tested cutting data for red copper and aluminum. These parameters (RPM, feed rate, depth of cut) minimize trial and error, ensuring stable and repeatable machining results from the first cut
Target Materials & Industries
Materials:
- Non-Ferrous Metals: Red copper, brass, and aluminum alloys
- Plastics & Resins: Resin-based tooling and high-precision plastic components
Industries:
- Mold & Die (EDM electrodes)
- Automotive (aluminum parts)
- Electronics (copper heat sinks)
Pro-Tips for Machining Copper & Aluminum
- Cooling Strategy: Use high-pressure air blast or MQL to keep the cutting zone clear
- High-Speed Stability: DLC-coated tools thrive in high-speed environments; ensure the spindle is balanced
- Tool Setting: Protect the ultra-sharp edge and DLC layer using non-contact measuring devices during setup
Why Partner with SAMHO for Your Tooling Needs?
- Industrial Quality: 31+ specialized models available to cover all precision requirements
- Factory-Direct Pricing: Significant savings for bulk procurement and global distributors
- OEM Customization: Tailored neck lengths, coatings, and shank styles available via zane@samhotool.com
