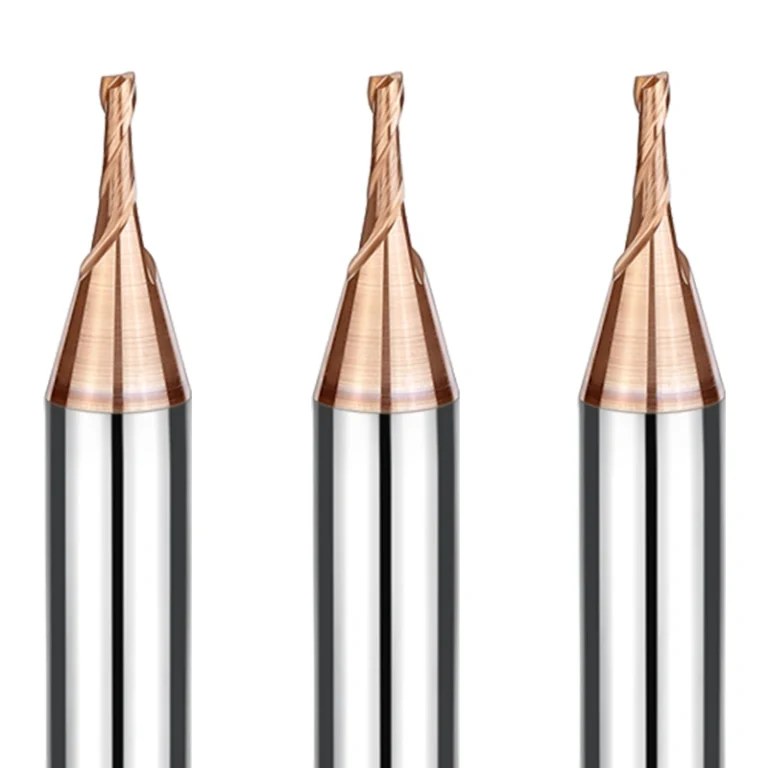

hrc65 end mills 2 flute flat end mill hrc65 end mills hrc65 end mills 2 flute flat end mill2

hrc65 end mills 2 flute flat end mill

Designed for high-speed machining of hardened mold steels, the SAMHO SHGS2 Series delivers the perfect balance of durability and precision.

Hardness Range: Optimized for materials up to 65HRC.

Versatile Sizing: Available from ultra-micro Φ0.2 mm to standard Φ6.0 mm.

Performance: Advanced high-hardness coating ensures thermal stability during dry cutting.

Wholesale Advantage: Premium Chinese manufacturing with unbeatable factory-direct pricing for global distributors.

Get Quote

In the demanding world of mold making and precision engineering, tool reliability is non-negotiable. The SAMHO HRC65 Flat End Mill excels where standard carbide tools fail, offering exceptional wear resistance and surface finish quality on heat-treated steels.

Core Technical Advantages

  1. Specialized for HRC65 Hardened Materials
    Crafted from ultra-fine grain carbide substrates with advanced coating technology, providing the toughness to handle hardened tool steels, die steels, and alloy steels up to HRC65. Reduces tool change frequency and lowers cost-per-part.
  2. Optimized 2-Flute Geometry for High Precision
    • Enhance Stability: Reduces cutting resistance and harmonic vibration during high-speed operations
    • Improve Chip Clearance: Large flute volume ensures rapid chip evacuation, preventing heat buildup and tool breakage
    • Superior Surface Finish: Achieves mirror-like results in semi-finishing and finishing stages
  3. High Red Hardness Nano-Coating
    Maintains cutting edge even at extreme temperatures, ideal for High-Speed Machining (HSM) and dry cutting where traditional coolants are ineffective
  4. Full Range of Micro to Standard Diameters (Φ0.2–6.0 mm)
    From micro-precision for intricate electronics and medical molds (Φ0.2 mm) to robust diameters for general mold work (Φ6.0 mm), covering 15+ specialized models to meet any CNC requirement

Professional Application & Industry Use

  • Mold & Die Industry: Precision machining of injection mold cores and cavities
  • Aerospace & Automotive: Milling of high-strength heat-treated components
  • Medical Device Manufacturing: Intricate milling of surgical-grade alloys

Technical Guidelines for Maximum Efficiency

  • Coolant Strategy: Oil coolant for stainless steels; Air/Mist cooling for high-hardness steels to prevent thermal cracking
  • Tool Measurement: For micro-diameters (Φ0.2–1.0 mm), use non-contact measuring devices to protect the precision tip
  • Parameter Tuning: If machine RPM is limited, scale down spindle speed and feed rate proportionally to maintain chip load

Why Choose SAMHO as Your Wholesale Partner?

  • In-Stock Reliability: Most sizes of SHGS2 series ready for immediate global shipping
  • OEM/ODM Services: Custom lengths, coatings, and shank configurations available
  • Tested Parameters: Proven cutting data provided to eliminate trial-and-error and maximize productivity
Model Number Outside Diameter Length Of Cut Effective Length Shank Taper Angle Overall Length Number Of Flutes Shank Diameter In Stock
SHGS2-0020040 0.2 0.4 ✓ 12° 50 2 4 ○
SHGS2-0030060 0.3 0.6 ✓ 12° 50 2 4 ○
SHGS2-0040080 0.4 0.8 ✓ 12° 50 2 4 ○
SHGS2-0050100 0.5 1.0 ✓ 12° 50 2 4 ○
SHGS2-0060120 0.6 1.2 ✓ 12° 50 2 4 ○
SHGS2-0070140 0.7 1.4 ✓ 12° 50 2 4 ○
SHGS2-0080160 0.8 1.6 ✓ 12° 50 2 4 ○
SHGS2-0100300 1.0 3.0 ✓ 12° 50 2 4 ○
SHGS2-0150400 1.5 4.0 ✓ 12° 50 2 4 ○
SHGS2-0200500 2.0 5.0 ✓ 12° 50 2 4 ○
SHGS2-0250600 2.5 6.0 ✓ 12° 50 2 4 ○
SHGS2-0300800-4 3.0 8.0 ✓ 12° 50 2 4 ○
SHGS2-0401000-4 4.0 10.0 ✓ – 50 2 4 ○
SHGS2-0401000-6 4.0 10.0 ✓ 12° 60 2 6 ○
SHGS2-0601500 6.0 15.0 ✓ – 60 2 6 ○

  • SHGS2 Milling Parameters

Diameter (mm) HRC30–45 Prehardened SteelsSpeed (min⁻¹) Feed (mm/min) HRC45–55 Hardened SteelsSpeed (min⁻¹) Feed (mm/min) HRC55–65 Hardened SteelsSpeed (min⁻¹) Feed (mm/min)
D1.0 10000 100 8000 60 7000 40
D1.5 8000 120 6000 60 5000 50
D2.0 7000 120 5000 60 4000 55
D2.5 6000 120 4500 60 3500 55
D3.0 5000 150 4000 80 3000 60
D4.0 4000 150 4000 100 2200 100
D4.0 4000 150 4000 100 2200 120
D6.0 3500 250 3000 200 2000 150
Milling Amount for Side Milling(mm)

Work Material 2.5D (Length of Cut = Diameter * 2.5) 4D (Length of Cut = Diameter * 4)
Below 45HRC ae = 0.07D
ap = 2D		 ae = 0.07D
ap = 2D
Above 45HRC ae = 0.03D
ap = 1.5D		 ae = 0.03D
ap = 1.5D
  • D：Diameter (mm)
  • ap：Axial Depth (mm)
  • ae：Radial Depth (mm)

    Contour Milling Parameters

Work Material HRC30-45 Prehardened Steels HRC30-45 Prehardened Steels HRC45-55 Hardened Steels HRC45-55 Hardened Steels HRC55-65 Hardened Steels HRC55-65 Hardened Steels
(mm) Diameter (min-1) Speed (mm/min) Feed (min-1) Speed (mm/min) Feed (min-1) Speed (mm/min) Feed
D0.2 30000 120 30000 120 20000 50
D0.3 30000 150 30000 150 16000 50
D0.4 30000 200 30000 200 16000 60
D0.5 26000 200 26000 200 14000 80
D0.6 24000 300 24000 300 14000 80
D0.7 20000 500 20000 500 12000 100
D0.8 16000 800 16000 800 10000 150
D1.0 13000 1000 13000 1000 8000 300
D1.5 13000 1200 13000 1200 8000 300
D2.0 12000 1500 12000 1500 8000 500
D2.5 12000 1500 12000 1500 8000 800
D3 11000 1800 11000 1800 8000 1000
D4 10000 2200 10000 2200 7500 1200
D4 10000 2200 10000 2200 7500 1200
D6 9000 2500 9000 2500 7000 1400
