High-Precision Cutting Tool Solutions for Advanced Mold and Die Manufacturing
Mold making is the foundation of modern manufacturing, requiring tools that can tackle HRC 50–68 hardened steels with absolute precision. SAMHO delivers specialty cutting tools engineered for the intricate detailing, deep-cavity reach, and extreme durability demanded by injection molds, die-casting dies, and stamping tools. Our solutions minimize manual polishing and maximize the accuracy of your 3D contours.
Precision Tooling for Complex Profiles and Heavy-Duty Dies
Injection Mold Cavities

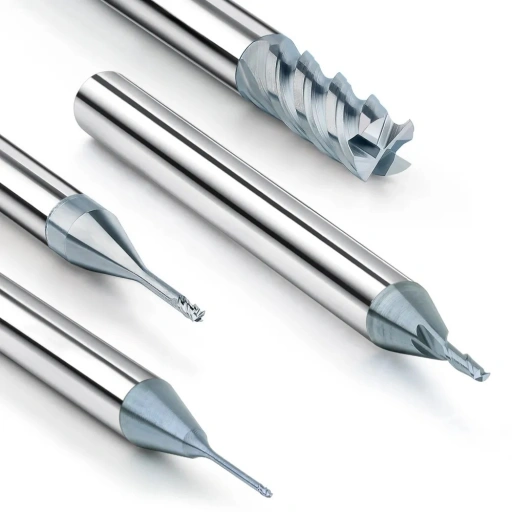

Plastic injection molds often feature deep, narrow cavities that are difficult to access. SAMHO’s Specialized Long-Neck End Mills are designed with reinforced shanks to maintain high rigidity and minimize vibration. This allows for precise contouring in deep pockets without the risk of tool deflection or surface chatter.
Die Casting & Stamping Dies
Working with tough materials like H13, D2, or S7 tool steel requires exceptional red-hardness. SAMHO’s AlTiN-X and Nano-Blue Coated Cutters maintain their cutting edges at extreme temperatures, ensuring dimensional stability and preventing edge chipping during the long machining cycles required for automotive and industrial dies.
High-Speed Finishing & Micro-Molding
For precision optical molds and medical-grade dies, surface finish is critical. Our High-Mirror Series delivers surface roughness of $Ra < 0.2\mu m$ directly from the CNC machine. By achieving a near-mirror finish during the milling stage, we significantly reduce or eliminate the need for time-consuming secondary manual polishing.
Electrode Machining (Graphite & Copper)
For Electric Discharge Machining (EDM), the quality of the electrode determines the quality of the mold. SAMHO provides Diamond-Coated Tools for graphite and specialized cutters for copper, ensuring burr-free edges and precise dimensions for complex electrode profiles.
Advanced Features for Hardened Material Machining
Precision in Every Layer, Durability in Every Cut.
Ultra-Fine Micro-Grain Substrates
We utilize specialized carbide substrates with sub-micron grain structures, providing the perfect balance of hardness and transverse rupture strength needed to machine materials up to HRC 68.
Advanced Nano-Coating Technology
Our AlTiN-X and Silico-based coatings offer a surface hardness of up to 4500 HV and heat resistance up to 1100°C, acting as a thermal shield for the tool's cutting edge.
Optimized Geometry for High-Feed Milling
SAMHO’s unique flute designs and edge preparations are engineered to reduce cutting force and thrust, allowing for faster feed rates while maintaining stable performance in hardened tool steels.
High-Performance Cutting Tools for Die & Mold
Precision Cutting Tools for Every Industrial Application
Mold-Making Insights
Technical Expertise and Industry Knowledge
FAQ: Die & Mold Tooling Solutions
Q1: What is the highest material hardness SAMHO tools can machine?
A: Our specialized Nano-Blue series is engineered to machine hardened steels up to HRC 68 with high stability and precision.
Q2: How do you prevent tool breakage when milling deep mold cavities?
A: We use reinforced long-neck designs and tapered shanks combined with ultra-fine grain carbide to maximize rigidity and dampen vibrations.
Q3: Can SAMHO tools eliminate the need for manual polishing?

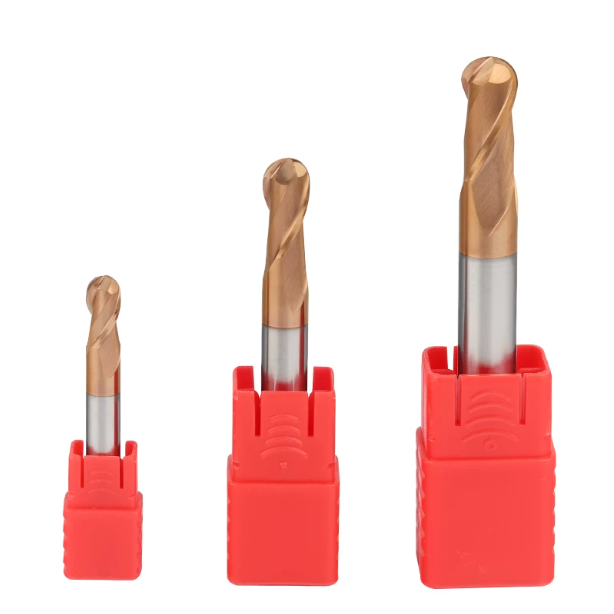

A: Yes. Our High-Mirror Ball Nose Mills can achieve surface finishes of $Ra < 0.2\mu m$, which in many cases allows you to skip secondary polishing.
Q4: Which coating is best for H13 hot-work tool steel?
A: We recommend AlTiN-X or Silico-based coatings due to their extreme heat resistance and ability to withstand the thermal cycles of machining H13.
Q5: Do you offer specialized tools for graphite electrode machining?
A: Yes. We provide CVD Diamond-Coated tools that are highly resistant to the abrasive nature of graphite, ensuring sharp edges and precise dimensions.
Q6: How does tool geometry affect the quality of a 3D mold profile?

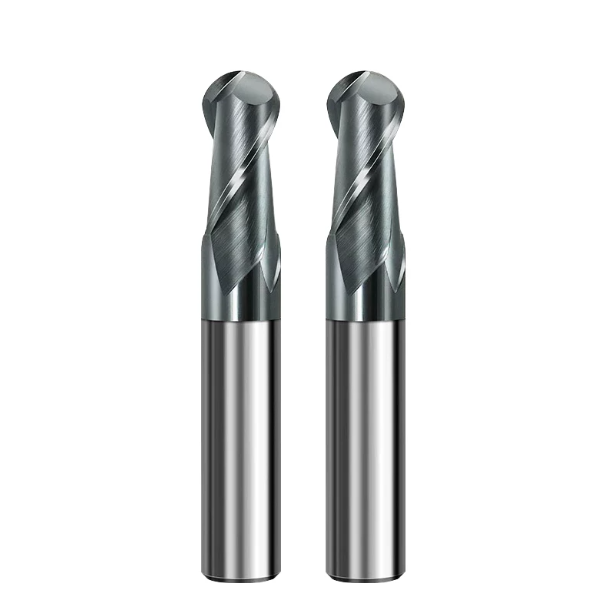

A: Sphericity and rake angle are key. SAMHO ball nose mills feature $\pm 0.005mm$ sphericity, ensuring a seamless blend between cutting passes on complex curves.
Q7: Can SAMHO assist with custom tool designs for specific injection molds?
A: Absolutely. Our engineers can customize the neck length, taper angle, and edge prep to suit your specific mold geometry and material.
Q8: What is the advantage of high-feed milling in die and mold making?
A: High-feed milling allows for rapid material removal (roughing) in hardened steel, significantly reducing overall machining time while maintaining tool stability.
Q9: How do you ensure batch-to-batch consistency for precision molds?
A: Every tool is produced on high-precision CNC grinding machines and verified using 100% automated optical inspection to ensure zero deviation.
Q10: What is the typical lead time for custom mold-making tools?
A: Custom long-neck or specialty profile tools are typically delivered within 7-14 business days from technical approval.
Ready to Master Your Complex Mold Projects?
Contact our technical team today for a customized Die & Mold tooling consultation. Achieve tighter tolerances and superior finishes with SAMHO.
