hrc65 end mills 2 flute ball nose end mill

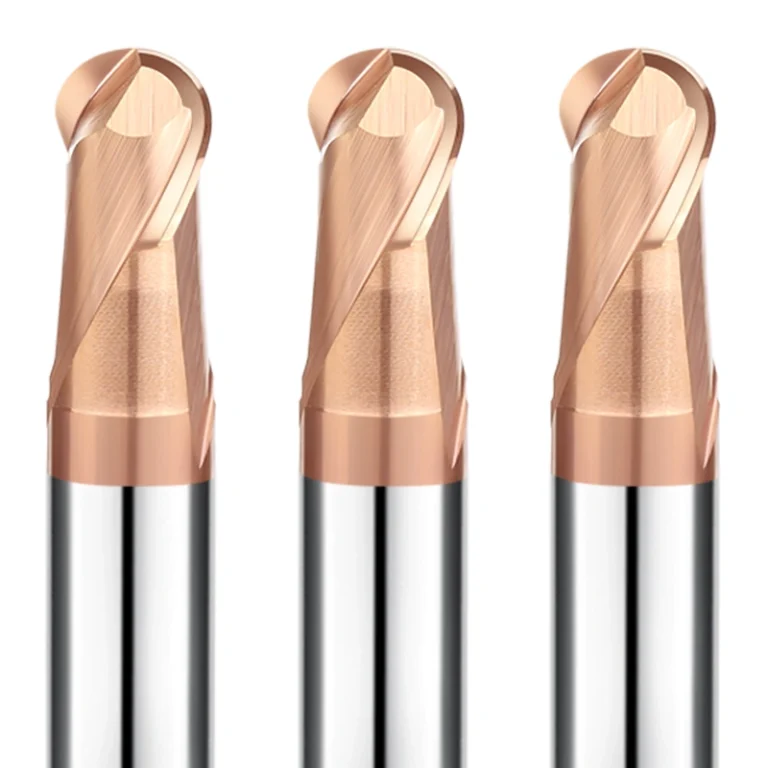

Achieve superior surface integrity on hardened materials with the SAMHO SHGR2 Series. Specifically engineered for steels up to 65HRC, this carbide ball nose cutter is the professional choice for 3D profiling, sculpted features, and mold finishing.

Size Range: Comprehensive selection from R0.15 to R10.0 mm (36 models).

Design: 2-flute geometry for maximum chip evacuation and reduced vibration.

Performance: High-hardness coating enables stable, high-speed dry machining.

Supply: Wholesale factory-direct pricing with OEM customization options.

Get Quote

Precision mold-making and aerospace components require tools that can withstand extreme heat while maintaining a perfect hemispherical geometry. The SAMHO HRC65 2-Flute Ball Nose Series delivers exceptional dimensional accuracy and mirror-like finishes on materials up to HRC65.

Core Engineering & Technical Benefits

  • Specifically Engineered for High-Hardness Steel (Up to HRC65)
    Manufactured from an ultra-fine grain carbide substrate, these end mills possess the fracture toughness needed for hardened tool steels and die steels. The high-performance wear-resistant coating ensures long tool life and stable performance during prolonged finishing cycles
  • 2-Flute Geometry for Efficient Chip Evacuation
    Ample chip space is critical when machining deep cavities or narrow 3D contours:
    • Greater Stability: Ideal for semi-finishing and fine finishing
    • Improved Accuracy: Consistent radius tolerance for perfect rest milling and blending
  • Optimized for Complex 3D Contouring
    Precision-ground hemispherical tip:
    • Surface Finishing: Eliminates scalloping marks in complex 3D profiles
    • Intricate Features: From micro-molds (R0.15 mm) to large die cores (R10 mm), ensuring surface integrity across all scales
  • High Red Hardness Coating for Dry Machining
    Thermal-resistant coating maintains edge sharpness at elevated temperatures, supporting high-speed machining (HSM) under dry or MQL conditions, enhancing sustainability and reducing manufacturing costs

Comprehensive Model Selection (36 Models)

Covers a diameter range from Φ0.3 mm (R0.15 mm) to Φ20 mm (R10 mm). Perfect for micro-medical components or large-scale automotive dies, all in stock for immediate use

Usage Guidelines for Peak Performance

  • Overhang Sensitivity: For best results, use the shortest possible overhang. If the overhang exceeds 3×D, decrease spindle speed and feed rate proportionally
  • Coolant Strategy: Use Air/Mist cooling for hardened steel and oil coolant for stainless steels or heat-resistant alloys
  • Setup Safety: Use non-contact tool setters to avoid damaging the radius during setup

Why Partner with SAMHO for Wholesale?

  • Tested Parameters: Field-tested cutting data provided to reduce setup time
  • Bulk Availability: High stock levels on all 36 models for rapid global fulfillment
  • OEM Customization: Custom shank lengths or specialized coatings available upon request
Model Number D Outside Diameter L1 Length Of Cut L2 Effective Length BTa Shank Taper Angle L Overall Length T Number Of Flutes d Shank Diameter In Stock
SHGR2-003003 R0.15 0.3 – 12° 50 2 4 ○
SHGR2-004004 R0.2 0.4 – 12° 50 2 4 ○
SHGR2-005005 R0.25 0.5 – 12° 50 2 4 ○
SHGR2-006006 R0.3 0.6 – 12° 50 2 4 ○
SHGR2-008008 R0.4 0.8 – 12° 50 2 4 ○
SHGR2-
010015		 R0.5 1 1.5 12° 50 2 4 ○
SHGR2-
015025		 R0.75 1.35 2.5 12° 50 2 4 ○
SHGR2-020040 R1 4 4 12° 50 2 4 ○
SHGR2-020020-6 R1 2 4 12° 60 2 6 ○
SHGR2-030030-3 R1.5 3 6 – 50 2 3 ○
SHGR2-030060-4 R1.5 6 6 12° 50 2 4 ○
SHGR2-030030-6 R1.5 3 6 12° 60 2 6 ○
SHGR2-040080-4 R2 8 8 – 50 2 4 ○
SHGR2-040040-6 R2 4 8 12° 60 2 6 ○
SHGR2-050100 R2.5 5 10 12° 60 2 6 ○
SHGR2-060120 R3 6 12 – 60 2 6 ○
SHGR2-060120-75 R3 6 12 – 75 2 6 ○
SHGR2-060120-100 R3 6 12 – 100 2 6 ○
SHGR2-080160 R4 8 16 – 60 2 8 ○
SHGR2-080160-75 R4 8 16 – 75 2 8 ○
SHGR2-080160-100 R4 8 16 – 100 2 8 ○
SHGR2-080160-150 R4 8 16 – 150 2 8 ○
SHGR2-100200 R5 10 20 – 75 2 10 ○
SHGR2-100200-100 R5 10 20 – 100 2 10 ○
SHGR2-100200-150 R5 10 20 – 150 2 10 ○
SHGR2-120240 R6 12 24 – 75 2 12 ○
SHGR2-120240-100 R6 12 24 – 100 2 12 ○
SHGR2-120240-150 R6 12 24 – 150 2 12 ○
SHGR2-140280-100 R7 14 28 – 100 2 14 ○
SHGR2-140280-150 R7 14 28 – 150 2 14 ○
SHGR2-160320-100 R8 16 32 – 100 2 16 ○
SHGR2-160320-150 R8 16 32 – 150 2 16 ○
SHGR2-180360-100 R9 18 36 – 100 2 18 ○
SHGR2-180360-150 R9 18 36 – 150 2 18 ○
SHGR2-200400-100 R10 20 40 – 100 2 20 ○
SHGR2-200400-150 R10 20 40 – 150 2 20 ○
Download 1: hrc65 end mills 2 flute ball nose end mill File
Download 2: hrc65 end mills 2 flute ball nose end mill File
