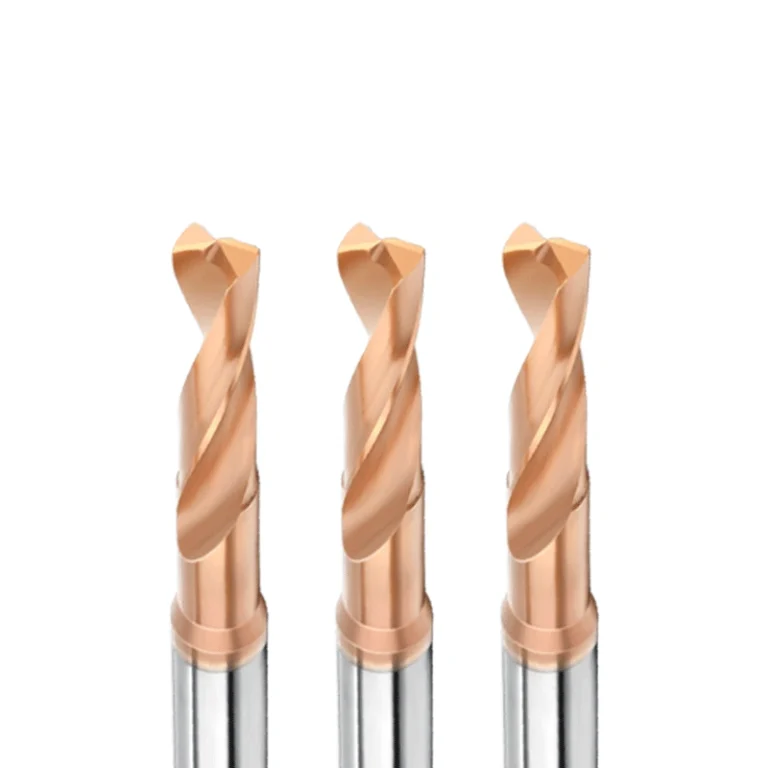

SAMHO HRC65 Solid Carbide Drill Bits – Precision Drilling (3D / 5D Options)

Designed for precision drilling in materials up to HRC65, the SAMHO Solid Drill Series is the ultimate choice for high-speed, high-efficiency machining without the need for internal coolant systems. Featuring a robust 140° point angle and ultra-fine grain carbide substrate, these bits deliver exceptional positioning accuracy and wear resistance in tool steel, mold steel, and heat-treated alloys.

Hardness Mastery: Optimized for HRC46 to HRC68 applications.

Cooling Versatility: Engineered for dry machining and MQL (Minimum Quantity Lubrication) environments.

Dual Depth Options: Available in 3×D and 5×D length-to-diameter ratios.

Precision Ground: 5-axis CNC manufactured for perfect concentricity.

Get Quote

When your machining setup doesn’t support through-spindle coolant, you need a drill bit that can handle the heat. The SAMHO HRC65 Solid Series provides a cost-effective, high-durability solution for drilling hardened steels, ensuring consistent hole quality and long tool life under demanding dry-cutting conditions.

Key Features & Technical Benefits

  • Ultra-Fine Grain Carbide for Extreme HRC65 Hardness
    Unlike standard bits, SAMHO drills are manufactured from a high-density ultra-fine grain carbide substrate. This material offers the perfect balance of fracture toughness and hardness, allowing the tool to maintain a sharp cutting edge even when drilling heat-treated materials up to HRC65.
  • 140° Point Geometry – “No-Walk” Accuracy
    Precision begins the moment the tool touches the workpiece. Our 140° split point design offers:
    • Superior Self-Centering: Minimizes tool walking and eliminates the need for pilot holes in many scenarios
    • Lower Axial Thrust: Reduces the load on your CNC spindle while maintaining high penetration rates
    • Improved Surface Finish: Ensures clean entry and exit for tight-tolerance holes
  • Reliable Solid Structure (No Internal Coolant Required)
    Specifically designed for machines using external cooling or MQL. This solid structure provides:
    • Increased Tool Rigidity: A solid core offers higher resistance to deflection than hollow coolant-fed drills
    • Cost-Efficiency: Premium performance without internal coolant channels
    • Maintenance-Free: No risk of clogged coolant holes in abrasive materials
  • 5-Axis CNC Precision Grinding
    Every drill in the SHD Series is ground on advanced 5-axis CNC machines. This ensures every flute, land, and point geometry is perfectly consistent, providing the repeatability necessary for high-volume production lines

Comprehensive Catalog & Sizes

  • 3D Series: Ideal for standard-depth holes and maximum rigidity
  • 5D Series: Optimized for deep-cavity drilling and complex structural parts
  • Customization: Contact us for specialized diameters or coating requirements

Application Industries

  • Mold & Die: Precision drilling of ejector pins and mounting holes in hardened mold bases
  • Automotive: Machining of heat-treated transmission components and gears
  • Aerospace: High-tolerance drilling in high-strength alloy steels

Why Choose SAMHO for Your Wholesale Needs?

  • Wholesale Discounts: Massive savings for bulk orders and global distributors
  • Field-Tested Parameters: Recommended speeds and feeds included for immediate operation
  • Rapid Fulfillment: High stock levels on all 3D/5D models for fast international shipping
Model Number Diameter of Drill Length of Drill Shank Diameter Overall Length Type In Stock
HRC65 Super Hard Drill Bits 1 1 11 4 50 Solid ○
HRC65 Super Hard Drill Bits 1.1 1.1 11 4 50 Solid ○
HRC65 Super Hard Drill Bits 1.2 1.2 11 4 50 Solid ○
HRC65 Super Hard Drill Bits 1.3 1.3 12 4 50 Solid ○
HRC65 Super Hard Drill Bits 1.4 1.4 12 4 50 Solid ○
HRC65 Super Hard Drill Bits 1.5 1.5 12 4 50 Solid ○
HRC65 Super Hard Drill Bits 1.6 1.6 12 4 50 Solid ○
HRC65 Super Hard Drill Bits 1.7 1.7 12 4 50 Solid ○
HRC65 Super Hard Drill Bits 1.8 1.8 12 4 50 Solid ○
HRC65 Super Hard Drill Bits 1.9 1.9 12 4 50 Solid ○
HRC65 Super Hard Drill Bits 2 2 15 4 50 Solid ○
HRC65 Super Hard Drill Bits 2.1 2.1 15 4 50 Solid ○
HRC65 Super Hard Drill Bits 2.2 2.2 15 4 50 Solid ○
HRC65 Super Hard Drill Bits 2.3 2.3 15 4 50 Solid ○
HRC65 Super Hard Drill Bits 2.4 2.4 15 4 50 Solid ○
HRC65 Super Hard Drill Bits 2.5 2.5 15 4 50 Solid ○
HRC65 Super Hard Drill Bits 2.6 2.6 15 4 50 Solid ○
HRC65 Super Hard Drill Bits 2.7 2.7 15 4 50 Solid ○
HRC65 Super Hard Drill Bits 2.8 2.8 15 4 50 Solid ○
HRC65 Super Hard Drill Bits 2.9 2.9 15 4 50 Solid ○
HRC65 Super Hard Drill Bits 3 3 15 4 50 Solid ○
HRC65 Super Hard Drill Bits 3.1 3.1 20 4 50 Solid ○
HRC65 Super Hard Drill Bits 3.2 3.2 20 4 50 Solid ○
HRC65 Super Hard Drill Bits 3.3 3.3 20 4 50 Solid ○
HRC65 Super Hard Drill Bits 3.4 3.4 20 4 50 Solid ○
HRC65 Super Hard Drill Bits 3.5 3.5 20 4 50 Solid ○
HRC65 Super Hard Drill Bits 3.6 3.6 20 4 50 Solid ○
HRC65 Super Hard Drill Bits 3.7 3.7 20 4 50 Solid ○
HRC65 Super Hard Drill Bits 3.8 3.8 20 4 50 Solid ○
HRC65 Super Hard Drill Bits 3.9) 3.9 20 4 50 Solid ○
HRC65 Super Hard Drill Bits 4 4 20 4 50 Solid ○
HRC65 Super Hard Drill Bits 4.1 4.1 24 6 66 Solid ○
HRC65 Super Hard Drill Bits 4.2 4.2 24 6 66 Solid ○
HRC65 Super Hard Drill Bits 4.3 4.3 24 6 66 Solid ○
HRC65 Super Hard Drill Bits 4.4 4.4 24 6 66 Solid ○
HRC65 Super Hard Drill Bits 4.5 4.5 24 6 66 Solid ○
HRC65 Super Hard Drill Bits 4.6 4.6 24 6 66 Solid ○
HRC65 Super Hard Drill Bits 4.7 4.7 28 6 66 Solid ○
HRC65 Super Hard Drill Bits 4.8 4.8 28 6 66 Solid ○
HRC65 Super Hard Drill Bits 4.9 4.9 28 6 66 Solid ○
HRC65 Super Hard Drill Bits 5 5 28 6 66 Solid ○
HRC65 Super Hard Drill Bits 5.1 5.1 28 6 66 Solid ○
HRC65 Super Hard Drill Bits 5.2 5.2 28 6 66 Solid ○
HRC65 Super Hard Drill Bits 5.3 5.3 28 6 66 Solid ○
HRC65 Super Hard Drill Bits 5.4 5.4 28 6 66 Solid ○
HRC65 Super Hard Drill Bits 5.5 5.5 28 6 66 Solid ○
HRC65 Super Hard Drill Bits 5.6 5.6 28 6 66 Solid ○
HRC65 Super Hard Drill Bits 5.7 5.7 28 6 66 Solid ○
HRC65 Super Hard Drill Bits 5.8 5.8 28 6 66 Solid ○
HRC65 Super Hard Drill Bits 5.9 5.9 28 6 66 Solid ○
HRC65 Super Hard Drill Bits 6 6 28 6 66 Solid ○
HRC65 Super Hard Drill Bits 6.1 6.1 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 6.2 6.2 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 6.3 6.3 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 6.4 6.4 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 6.5) 6.5 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 6.6 6.6 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 6.7 6.7 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 6.8 6.8 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 6.9 6.9 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 7 7 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 7.1 7.1 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 7.2 7.2 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 7.3 7.3 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 7.4 7.4 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 7.5 7.5 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 7.6 7.6 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 7.7 7.7 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 7.8 7.8 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 7.9 7.9 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 8 8 34 8 79 Solid ○
HRC65 Super Hard Drill Bits 8.1 8.1 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 8.2 8.2 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 8.3 8.3 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 8.4 8.4 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 8.5 8.5 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 8.6 8.6 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 8.7 8.7 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 8.8 8.8 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 8.9 8.9 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 9 9 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 9.1 9.1 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 9.2 9.2 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 9.3 9.3 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 9.4 9.4 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 9.5 9.5 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 9.6 9.6 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 9.7 9.7 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 9.8 9.8 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 9.9 9.9 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 10 10 47 10 89 Solid ○
HRC65 Super Hard Drill Bits 10.1 10.1 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 10.2 10.2 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 10.3 10.3 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 10.4 10.4 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 10.5 10.5 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 10.6 10.6 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 10.7 10.7 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 10.8 10.8 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 10.9 10.9 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 11 11 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 11.1 11.1 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 11.2 11.2 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 11.3 11.3 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 11.4 11.4 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 11.5 11.5 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 11.6 11.6 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 11.7 11.7 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 11.8 11.8 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 11.9 11.9 55 12 102 Solid ○
HRC65 Super Hard Drill Bits 12 12 55 12 102 Solid ○
Download 1: hrc65 solid drill bit File
Download 2: hrc65 solid drill bit File
