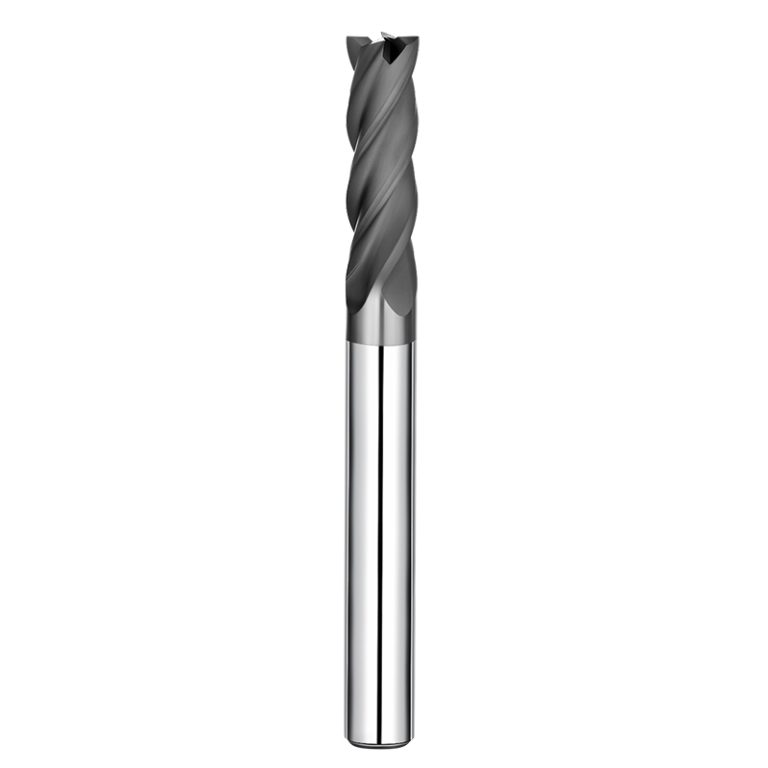

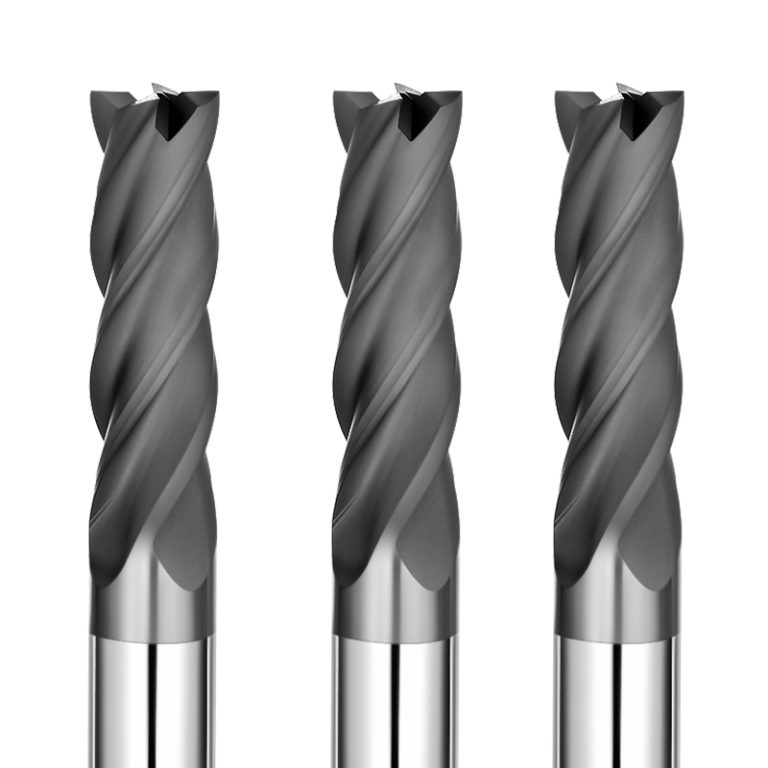

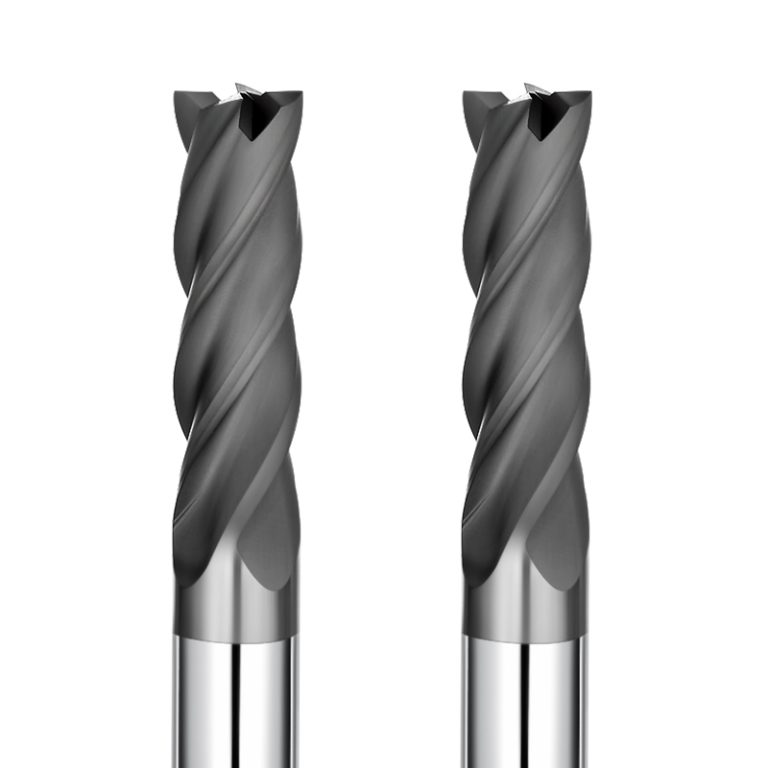

In graphite manufacturing, machining operations place exceptionally high demands on cutting tools, requiring both precise performance and long-lasting durability. The SAMHO diamond coated 4 flute flat end mill for graphite (D1–12 mm) is engineered to meet these strict requirements. Its advanced diamond coating and optimized 4-flute design allow CNC operators to machine graphite and ceramic materials efficiently and accurately.
Advanced Technical Features
High-Adhesion Diamond Coating for Ultra-Long Tool Life
SAMHO’s proprietary diamond coating technology gives these 4-flute flat end mills exceptional hardness and chemical inertness:
- Wear Resistance: Cutting edges stay sharp during prolonged dry cutting or light-load machining.
- Micro-Chipping Prevention: The coating adheres firmly to the carbide substrate during high-speed cutting, reducing micro-chipping.
- Optimized Flute Geometry: Engineered for efficient graphite and ceramic machining, ensuring stable performance.
Precision Flat End Face and 4-Flute Design
- The flat end face and 4-flute geometry allow efficient machining of flat surfaces, slots, and complex contours.
- Graphite Machining: Produces smooth, clean surface finishes, ideal for intricate electrode workpieces.
- Ceramic Machining: Delivers high-precision finishes without any tool marks.
High-Efficiency 4-Flute “Cool-Cutting” Design
- The sharp 4-flute geometry reduces cutting heat and improves chip evacuation.
- Maximized Chip Evacuation: Quickly removes abrasive dust and debris from the cutting zone.
- Reduced Cutting Load: Minimizes heat buildup, preventing cracks in brittle materials.
Ultra-Fine Grain Carbide Substrate and High-Precision Grinding
- The high-strength, ultra-fine grain carbide substrate, precision-ground on specialized equipment, ensures excellent repeatability and accuracy.
- Dimensional Tolerance Control: Strictly held within ±0.01 mm, ensuring batch-to-batch consistency.
- Fracture Resistance: Enhances durability, especially for abrasive material machining.
Typical Applications
- Graphite Machining: Ideal for high-precision milling of EDM electrodes, graphite molds, and structural components.
- Ceramic Machining: Suitable for precision milling of zirconia and other brittle electrical ceramics.
- Composite Materials: Efficiently mills glass fiber and carbon fiber reinforced plastics, providing excellent surface finish and machining stability.
Why Source Wholesale from SAMHO?
Exceptional Tool Life: High-adhesion diamond coating provides superior wear resistance and prevents micro-chipping, supporting both dry and high-speed cutting.
Outstanding Machining Precision: Precision flat-bottom tip and 4-flute design deliver high accuracy and repeatability for graphite, ceramics, and composite materials.
Strict Tolerances and High Reliability: Ultra-fine-grain carbide substrate ensures tight machining tolerances within ±0.01 mm while offering excellent resistance to fracture and wear.
