In precision machining of non-ferrous metals and non-metallic materials, cutting tools must meet demanding performance standards. This is especially true when machining high-viscosity materials such as pure copper. These applications require extremely sharp cutting edges, excellent anti-adhesion properties, and consistent chip evacuation.

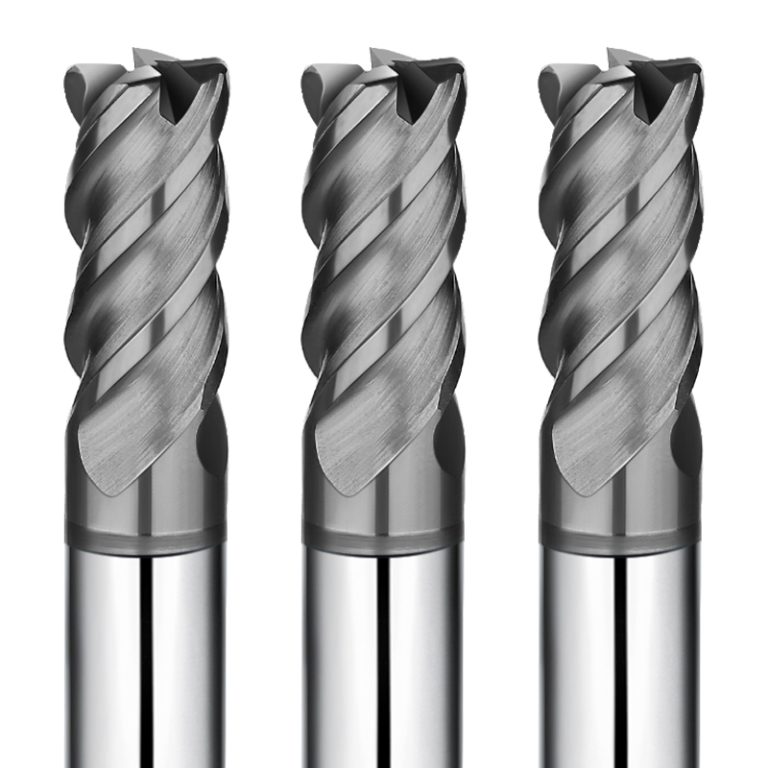

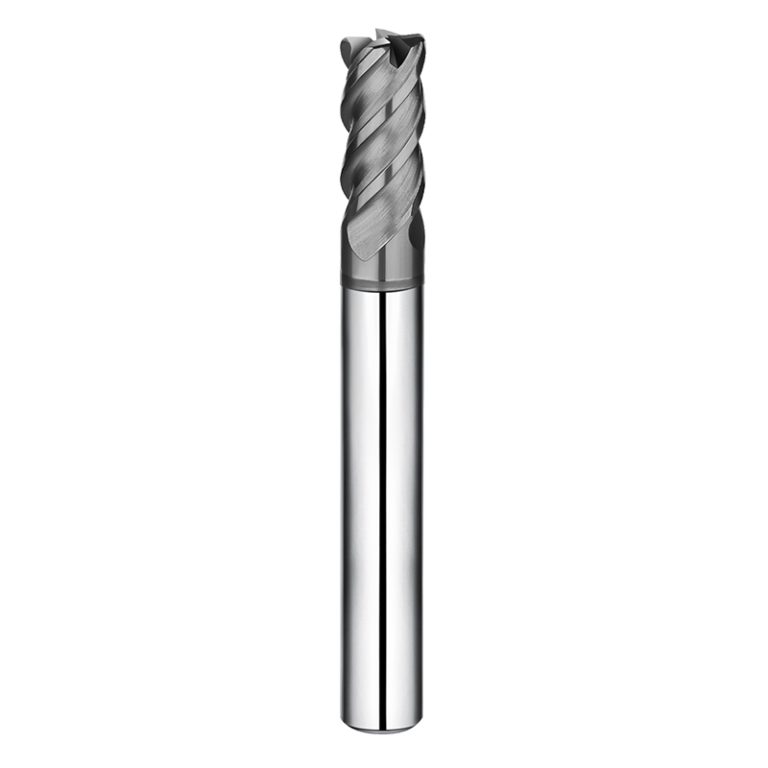

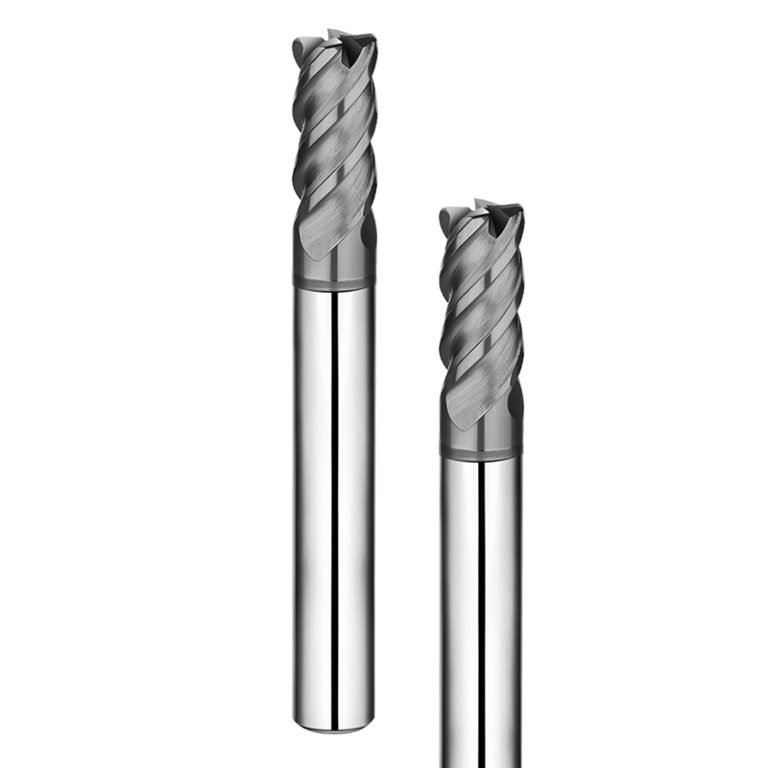

The SAMHO 4-flute corner radius end mill with DLC coating (D1–D12 mm) is specifically engineered for these challenges. Based on extensive CNC machining experience, this tool is optimized for stable and efficient copper cutting. The combination of a high-quality carbide substrate and a DLC coating significantly reduces friction during cutting. It also minimizes built-up edge formation, which is a common issue in copper machining.
Advanced Technical Features
In precision machining of non-ferrous metals, tool performance is critical. This is especially true when cutting highly adhesive materials such as red copper. These applications require excellent anti-adhesion properties, strong wear resistance, and consistent cutting stability.
The SAMHO DLC-coated 4-Flute bull nose end mill is engineered to meet these demands. Drawing on extensive CNC machining experience, this tool combines optimized geometry with advanced coating technology. The result is improved machining efficiency, better surface quality, and longer tool life.
High-Performance DLC Coating for Longer Tool Life
The advanced DLC coating provides low friction and excellent anti-adhesion performance:
- Reduces Built-Up Edge (BUE): Minimizes material sticking during copper machining
- Improves Wear Resistance: Maintains a sharp edge in high-speed, continuous cutting
- Lowers Cutting Friction: Reduces heat generation and improves surface finish
4-Flute Corner Radius Design for Efficiency and Finish
The 4-flute geometry with a corner radius is optimized for copper finishing and semi-finishing:
- Corner Radius Strength: Reduces stress at the tool tip and improves resistance to chipping
- Higher Cutting Efficiency: Supports higher feed rates in high-speed machining
- Better Surface Quality: Produces smoother finishes and reduces post-processing
Optimized Chip Evacuation and Stable Cutting
Designed specifically for non-ferrous materials, the flute geometry improves cutting performance:
- Efficient Chip Removal: Prevents chip buildup and reduces re-cutting
- Lower Heat Buildup: Helps avoid material adhesion and thermal deformation
- Stable Machining: Maintains consistent performance at high spindle speeds
Ultra-Fine Grain Carbide and Precision Manufacturing
The tool is made from high-quality ultra-fine grain carbide and finished with high-precision grinding:
- Tight Tolerances: Controlled within ±0.01 mm for consistent results
- High Toughness: Reduces the risk of breakage during long runs
- Reliable Performance: Suitable for precision parts and complex geometries
This end mill is designed primarily for red copper machining. It also performs well in aluminum alloys and resin materials. It is ideal for high-speed finishing and semi-finishing applications where surface quality and tool life are critical.
Target Applications & Industries
High-Precision Red Copper (Electrode Copper) Machining:
Effectively reduces material adhesion and built-up edge formation. It delivers smooth, high-gloss surface finishes with excellent dimensional accuracy.
Precision Machining of Aluminum Alloys:
Suitable for high-speed cutting and finishing operations. It ensures stable machining performance and consistent surface quality.
Machining of Resins and Composite Materials:
Provides clean cutting action with minimal burr formation. It produces well-defined edges and reduces secondary finishing work.
General Finishing and Semi-Finishing Operations:
Ideal for complex contours and parts requiring high surface quality and tight tolerances.
Why Choose SAMHO as Your Wholesale Partner?
Optimized for Red Copper Machining
Specifically engineered for red copper applications. It effectively reduces material adhesion and built-up edge formation. This improves surface finish quality and machining stability in CNC operations.
Low-Friction DLC Coating for Extended Tool Life
The advanced DLC coating reduces cutting resistance and heat generation. It helps extend tool life and improves reliability in continuous and high-speed machining environments.
4-Flute Corner Radius Design for Balanced Performance
The corner radius structure reduces stress concentration at the cutting edge. It lowers the risk of chipping while maintaining high feed efficiency and stable surface precision.
Consistent Performance in CNC Production
Manufactured under strict engineering-grade standards, SAMHO tools deliver stable and repeatable performance. This ensures reliable results in both small-batch and mass production environments.
